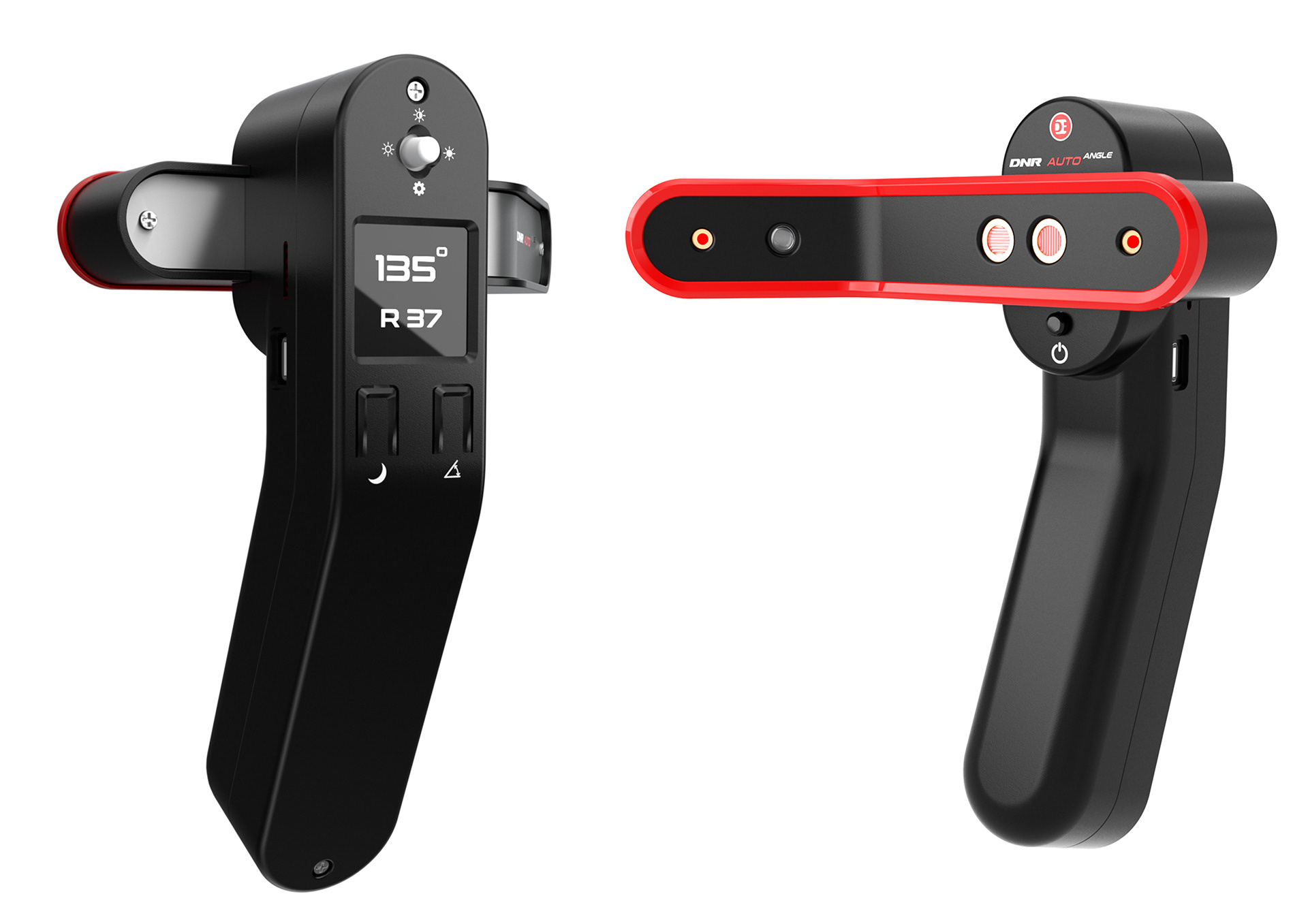

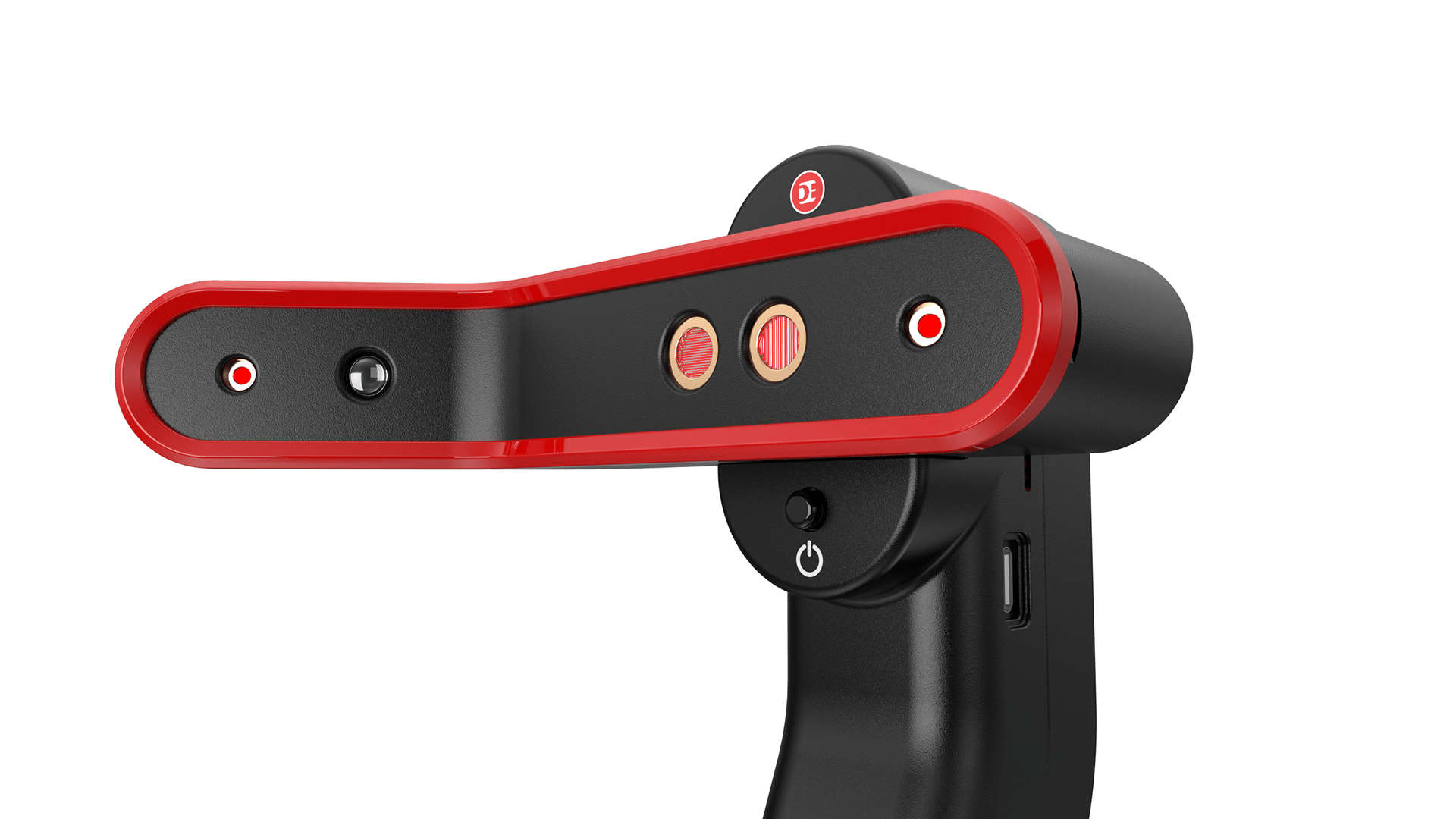

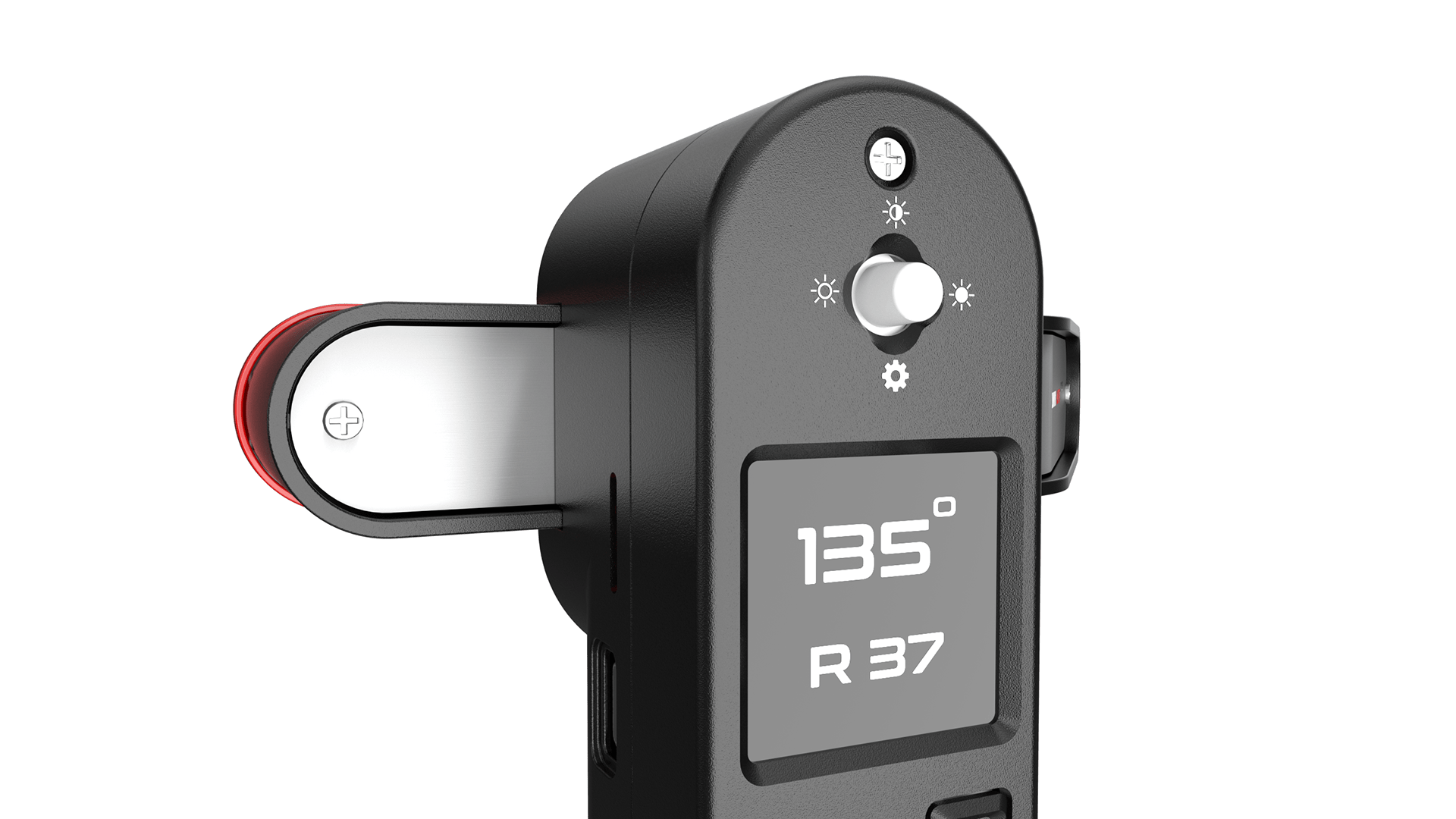

It is a non-contact and portable angle measuring device designed using image processing technology with the help of laser and camera.

It can take measurements faster and effortlessly than all angle measuring tools available in the market. Measurements can be taken in 0.67 seconds with an accuracy of 0.17 degrees, regardless of interior or exterior angles. Thanks to its digital interface, ‘DNR Auto Angle’, which is 18 times faster than the fastest competitor in the market, provides the angle value to the user without calculation.

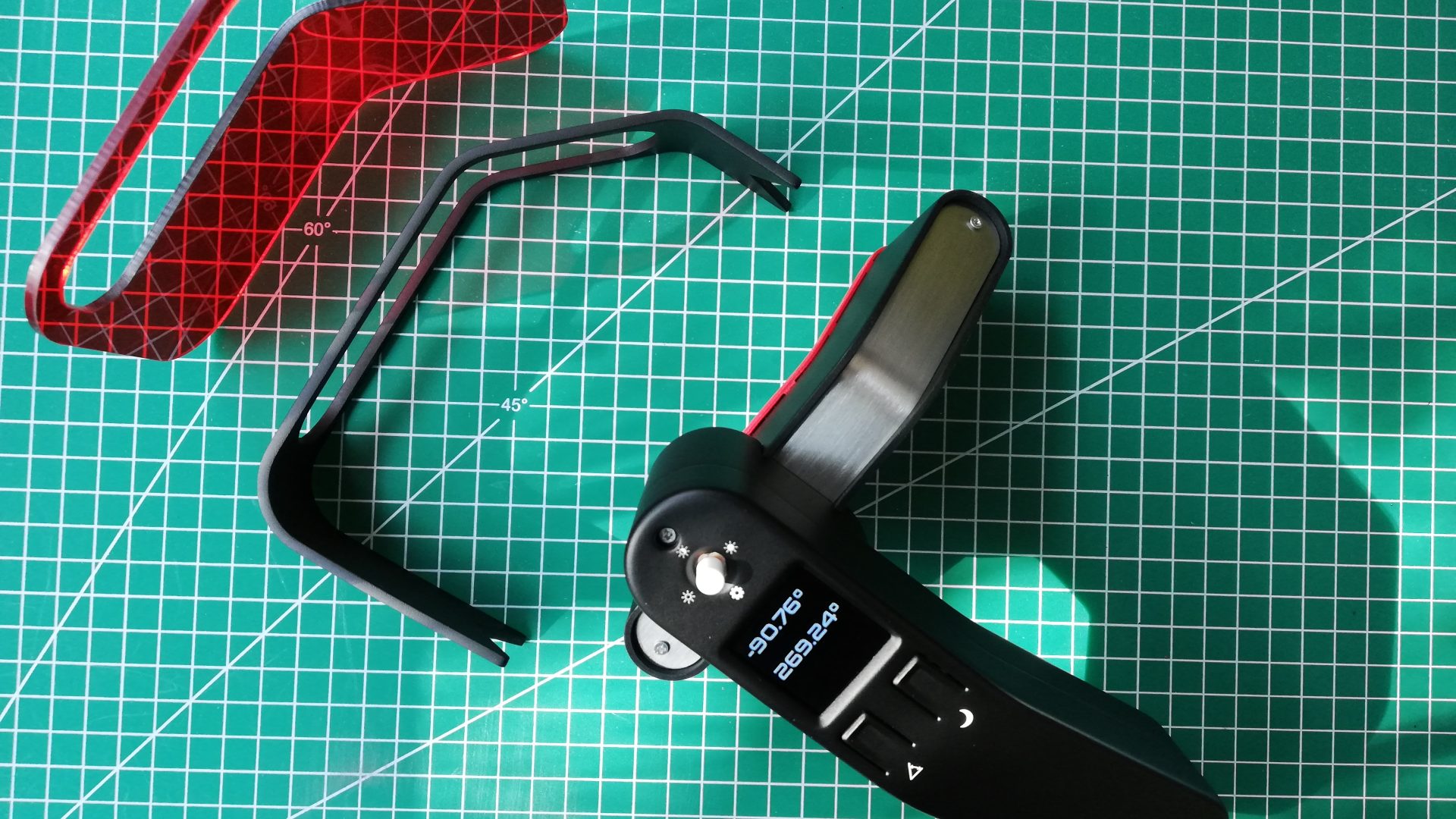

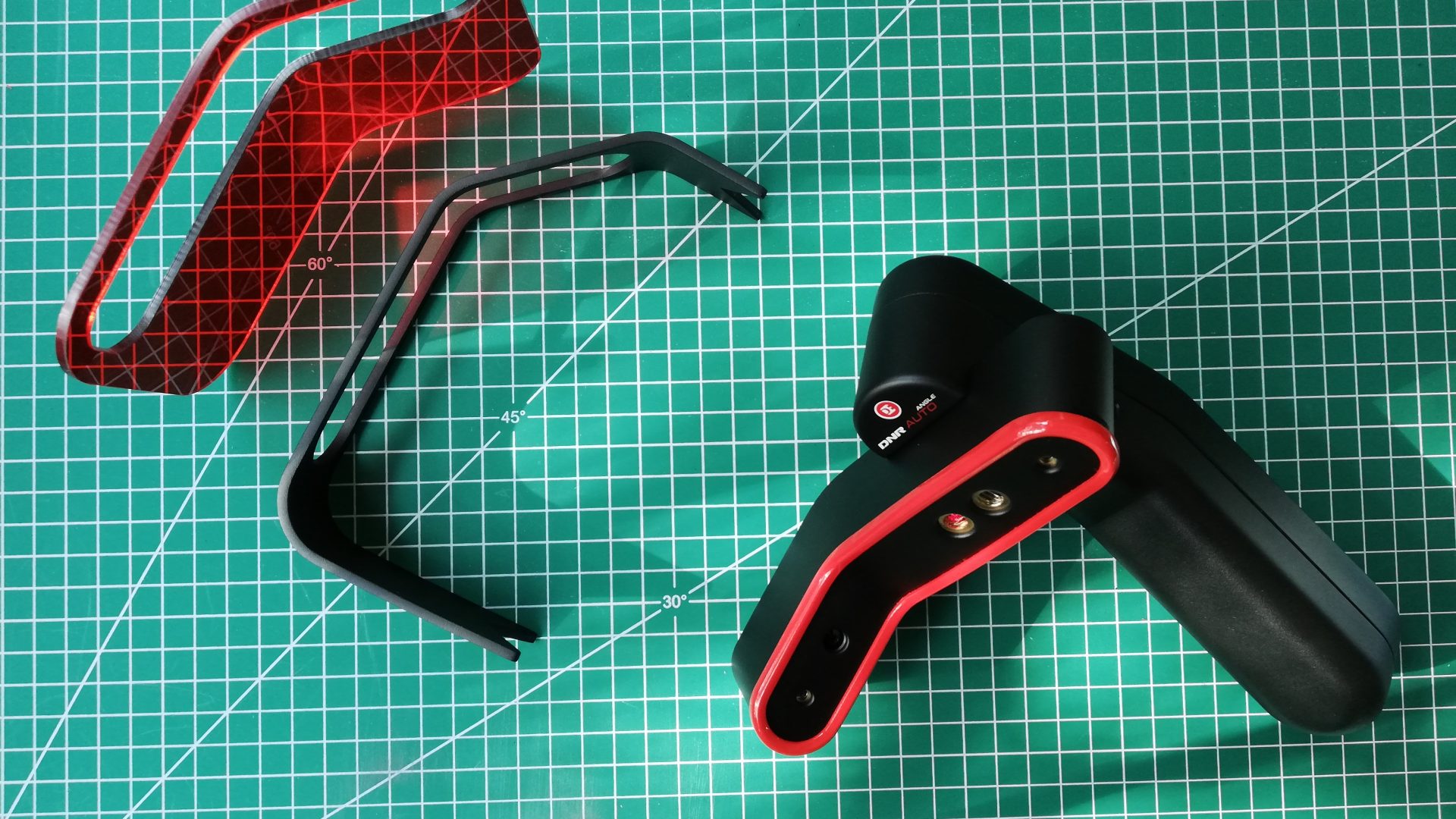

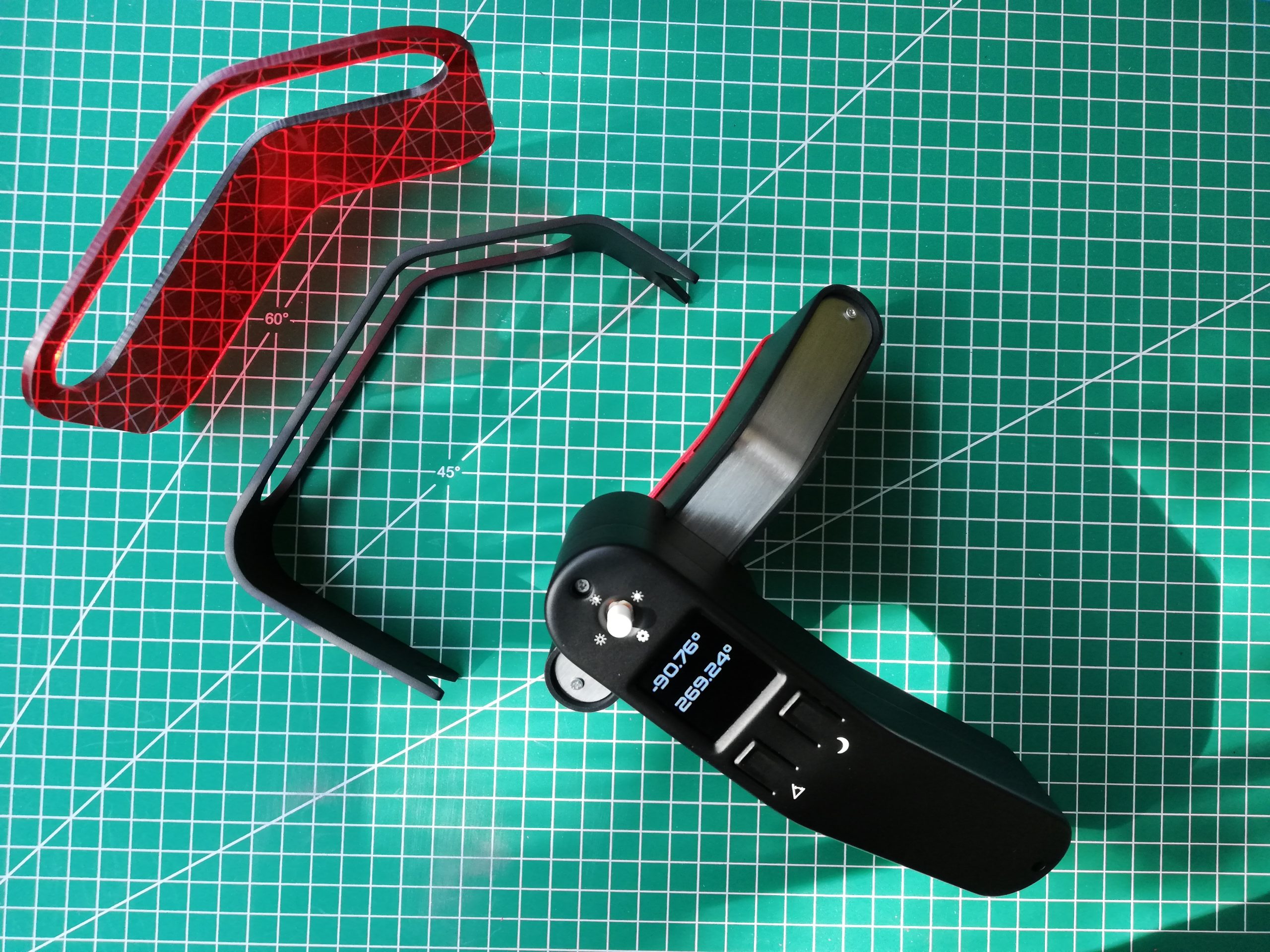

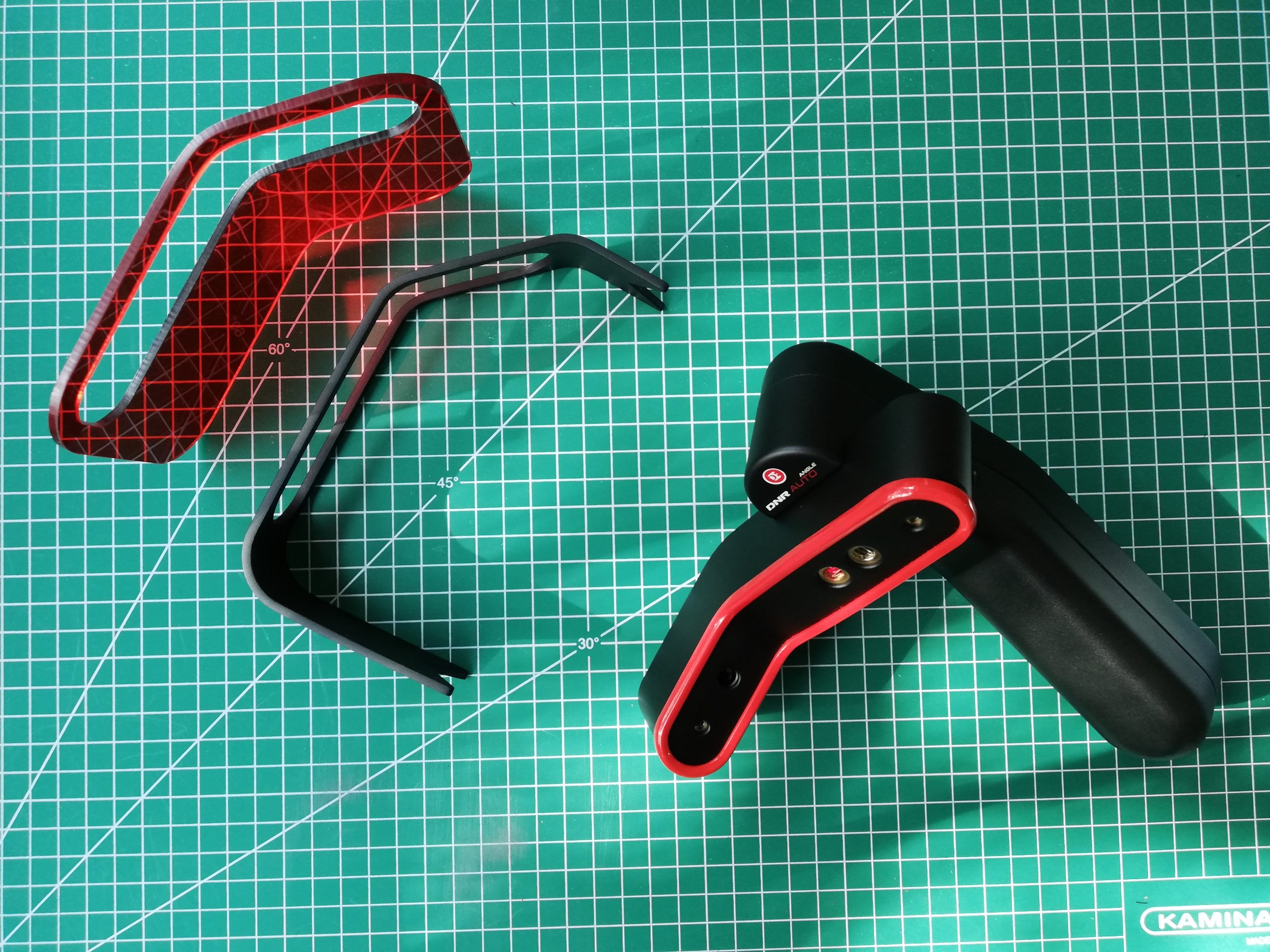

It is quite difficult to achieve the desired bending angles in sheet metal bending in press brakes. The operator must check the angle of the sheet he is bending after each bending and this process is repeated sequentially until he finds the correct value. This product, which is considered as a solution, has also brought a solution to many problems.

Since image processing technology is used to realize the function of the device, it is possible to use the device not only in press brakes, but also in many areas such as furniture, construction, sanitary ware and reverse engineering. Thanks to its portable structure, you can take measurements in any environment and regardless of material. Studies on Radius measurement of the product continue positively and when it is completed, it will be the first electronic device that can measure Radius.

The product has been patented.

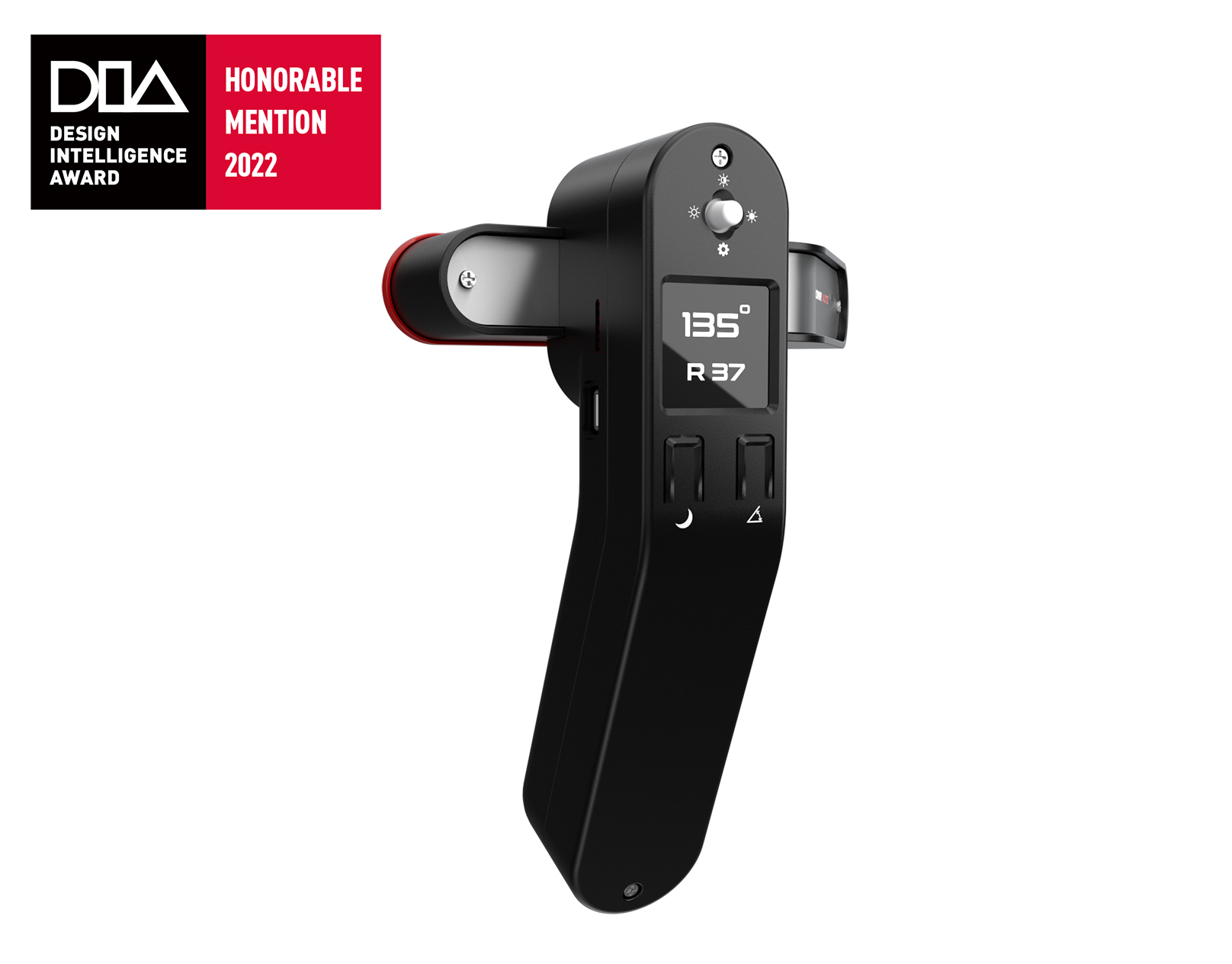

It won an honorable mention in the Design Intelligence Award (DIA) competition held in China.
